Blister machines

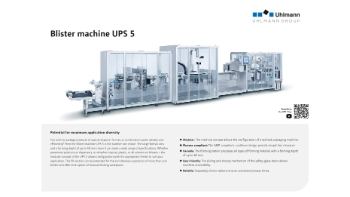

UPS 5

The UPS 5 perpetuates the machine concept of the most successful and versatile Uhlmann blister machine to date. It is geared in all respects to the highly productive packaging of solid dose and parenteral products.

Contact

Advantages of the UPS 5 at a glance

EfficientGMP-compliant cantilever design for easy, pharmaceutically compliant cleaning
ErgonomicVery good accessibility as glass safety doors with innovative sliding and closing mechanism
ModularityModular machine design; upgradable at all times

UPS 5 in focus

Technical data at a glance

Max. output	400 blisters/min.
Sealing principle	platen sealing
Mode of operation	1- to 8-lane
Scope of application	solid and parenteral products
Max. format area [index x width]	272 x 284 mm
Max. forming depth	40 mm (PVC), 12 mm (Al)
Max. reel diameter	forming material 800 mm, lid material 400 mm
Processable forming materials	Al, PVC, PVC/PVDC, PVC/Aclar, PS, PET
Processable lid materials	Al, paper/Al

How can we help you?

Do you have any questions about our blister machine or need more information about our product and service portfolio?

To the contact form

Unfortunately, due to your current cookie settings, we are not allowed to display the video. To view the video, please change the cookie settings to "Allow all".

Change Cookie Settings

A robot lifts the break-sensitive syringes from special transport trays and places them safely in the molded foil strip.
